PatternReview Blog > Using a Ruffler Foot: A Picture Tutorial by newmama
Using a Ruffler Foot: A Picture Tutorial by newmama By DianeSev on 5/10/13 12:49 PM

By newmama

Some background:  Most of the clothes I sew these days are for my daughter, which means I sew a lot of ruffles and gathers, even though I'm not into really frilly stuff!  One of my favorite dresses is a 3-tiered peasant dress made from Simplicity 2377.  It's a quick sew, except for gathering the tiers.  I made some for my twin nieces and it took me an hour just to sew two tiers together (times 2 per dress times 2 dresses... yeah, it took a while).  Though I like the control one has when gathering "by hand", I thought a ruffler foot would be a good investment.

Simplicity 2377

Simplicity 2377

When I bought my ruffler foot, I found it severely lacking in instructions.  And, while there are many resources on how to ruffle a strip of fabric (such as this one), there aren't many that tell how to use a ruffler foot to make a dress or a skirt, etc.  So I hope this two-part tutorial fills a niche.

This tutorial covers the set up and test strips for using the ruffler foot.  Hopefully you will find ways to apply this information to whatever you may want to add ruffles to :)

Some general tips when using a ruffler foot:

    (this can save you an hour of aggravated troubleshooting)
  • You do not want to back-stitch at the beginning or end, the fabric is only meant to go front-to-back through the ruffler.
  • The ruffler will sound noisy and a bit like it's broken, even though it's working.  It takes some getting used to.  It will, however, make a different noise if the blade gets bent and hit by the needle (ouch!).
  • Take a picture of your settings or write them down so that you can apply them to your project.  Be sure to note what kind of fabric you used, so you can reference your notes for future projects as well.

The following should help walk you through how to figure out a 2:1 and 3:2 gathering ratio for your ruffler.  I'll explain more about how these numbers can be used in the second part.  Try to just take a leap of sewing faith for now, okay?

1.  Gather materials

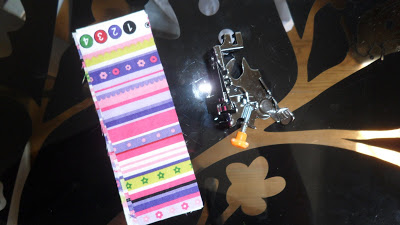

You'll need a ruffler foot (on right) and some 6-inch fabric strips to test your settings.

ruffler foot (on right) and some 6-inch fabric

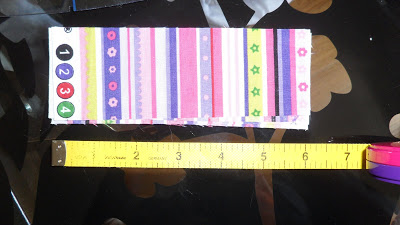

I used strips of fabric left over from cutting out my dress pieces.

strips of fabric

2.  Set up your ruffler foot/sewing machine
Here's the ruffler foot attached to my machine (there are lots of resources for help with this part).  Set your ruffler to "1", so it will gather at every stitch.

ruffler foot attached to my machine

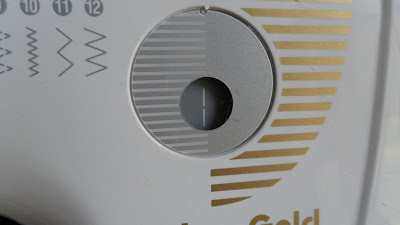

Set your machine to a long straight stitch (this is the longest setting I have on my machine).

Set your machine to a long straight stitch

3.  Test your settings

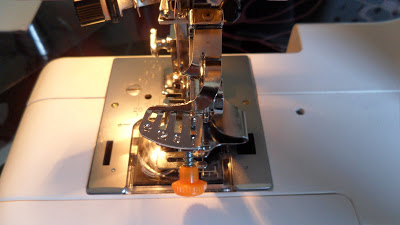

Here's where you'll have to experiment.  You'll need to set your adjustment screw (mine is the orange knob shown in the photos below) to change the depth of the gathers.  More threads showing at the end of the screw means a deeper pleat, which means your ruffle will be more ruffle-y. You want to figure out what settings you need for a 2:1 gather and a 3:2 gather.

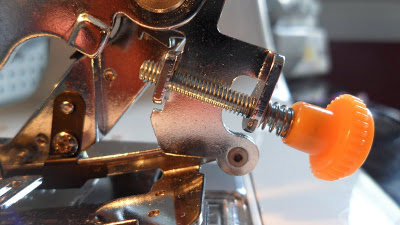

For a 2:1 gather, I have about 4.5 threads showing at the end of the adjustment screw.

 set your adjustment screw

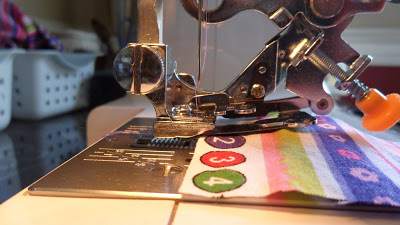

Insert a test strip into the ruffler foot.  It should go under the ruffling blade, which is what pushes the fabric to create the pleat/gather.  There is no need to try to weave it through the windy metal bit at the back.

Insert a test strip into the ruffler foot.

Turn the handwheel to bring your needle into the fabric, then start sewing.  Remember, you do not want to backstitch.  Once you sew your first test strip, measure the end result & adjust the screw if needed.  Our goal is a 3-inch ruffle.

If it's too long, set the screw deeper.
If it's too short, back the screw out some.

Keep testing strips until you get a ruffle that's about 3 inches long.  It doesn't have to be exact!  You just want it in the ballpark--ideally within a 1/4 inch or so, since the amount you are off will be multiplied with a longer piece of fabric.

Once you figure out where to position the screw to get your 2:1 gather, record it!  Take a picture, write it down, do whatever you need to to remember.  Then back the screw out to adjust for a 3:2 setting.

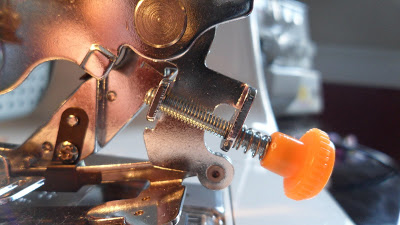

My setting for the 3:2 gathers is about 2.5 threads showing at the end of the adjustment screw.

position the screw

Your ruffle should end up 4 inches long.  Remember to record this as your 3:2 setting.

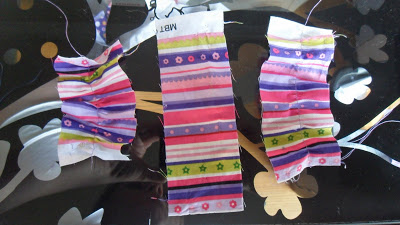

Here are my resulting test strips.  The one on the left is the 2:1 gathers, and measures about 3 inches.  The one on the right is the 3:2 and measures about 4.25 inches.  Remember, the ruffler foot is supposed to save time, so you don't need to be overly exact.

resulting test strips

Don't worry… This setup only takes this long the first time!  It is a good idea to do a quick test strip for each project, though, since different fabrics will gather differently.  But since you already have a baseline setting to start with, it should go quickly.

Read newmama's other tutorial: Using a Ruffler Foot – Construction: A Picture Tutorial

Read more tips by newmama.

Read newmama’s pattern reviews.

Read newmama’s sewing machine reviews.

Read newmama’s store reviews.

Visit newmama’s blog daniKate Designs.

Want to know more about rufflers?  Take a look at these discussions.
